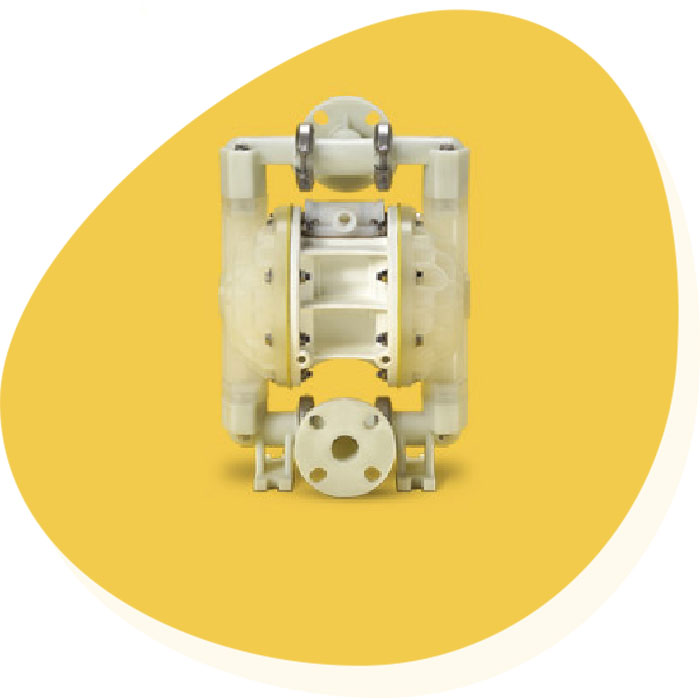

Bolted Plastic: Standard Porting

Versa-Matic's E1 1" pump uses the Elima-Matic air valve system to provide non-stalling, lube-free performance. The E1 1" plastic bolted pump comes in optional and standard porting models, and offers a flow rate of 0-35 gpm.

The E1 1" Pump...
  • Is available in either plastic or metal
  • Supplies a corrosion-resistant air section
  • Provides multiple porting options
  • Is self-priming
  • Offers center port and split manifolds on plastic bolted pumps
  • Offers UL listed models on bolted metallic pumps

Specifications

Specifications English  Metric
Flow Rate
adjustable to  0-35 gpm 0-132 lpm
Port Size
Inlet 1.0" ANSI/DIN Flanged
Discharge 1.0" ANSI/DIN Flanged
Air Inlet 0.375" NPTF
Air Exhaust 0.50" NPTF
Suction Lift
15' Dry/25' Wet (4.57m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
Diameter 0.125" 3.17mm
Shipping Weights
Polypropylene 24 lbs 10.9 kg
Kynar 24 lbs 10.9 kg

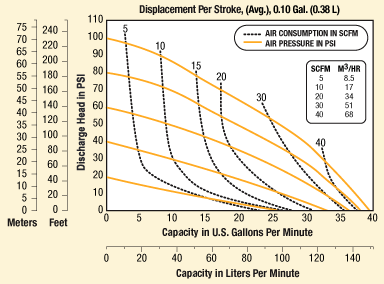

Performance Chart

Determined by actual flow meter tests

Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure

UL Listed Models Available
