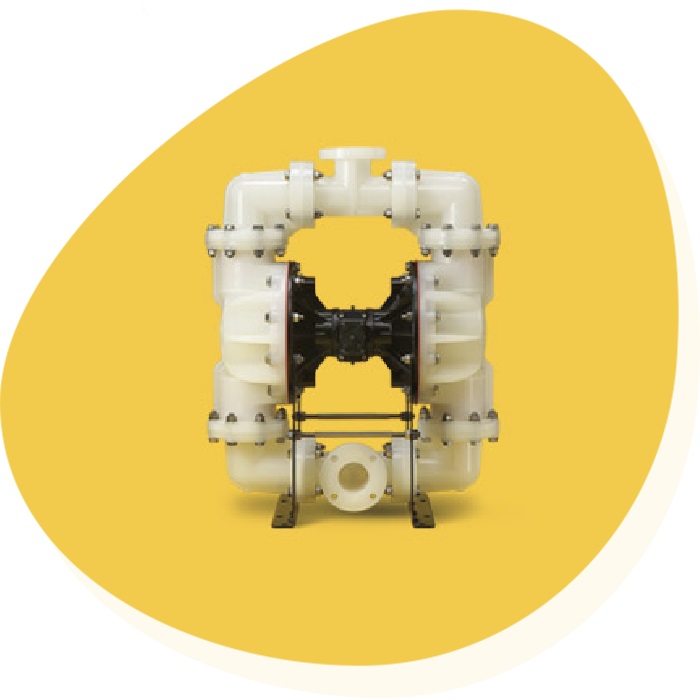

Bolted Plastic
Elima-Matic's non-stalling, lube-free air valve system allows the Versa-Matic E3 3" pump to provide reliable performance. Available in clamped or bolted models, with leak-free design that reduces downtime and ensures continuous operation.
The E3 3" Pump...
The E3 3" Pump...
- Is available in either plastic or metal
- Can handle infinite variable flows up to 90% solids
- Is self-priming
- Provides dimensional interchangeability with Wilden 3" pumps
- Offers screen mount on aluminum model
Specifications
| Specifications | English | Metric |
| Flow Rate | ||
| adjustable to | 0-238 gpm | 0-901 lpm |
| Port Size | ||
| Inlet & Outlet | 3" ANSI or DIN 80 Flange | |
| Air Inlet | 0.75" NPTF | |
| Air Exhaust | 1.0" NPT | |
| Suction Lift | ||
| 20' Dry/25' Wet (6.10m/7.62m) | ||
| PTFE: 10' Dry/20' Wet (3.05m/6.10m) | ||
| Max. Particle Size | ||
| Diameter | 0.71" | 18mm |
| Shipping Weights | ||
| Polypropylene | 231 lbs | 105 kg |
| PVDF | 315 lbs | 143 kg |

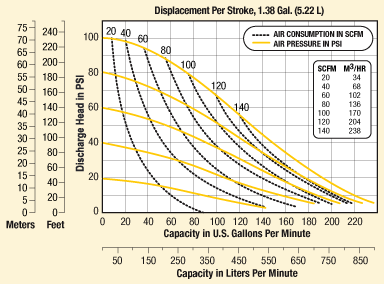

Performance Chart
Determined by actual flow meter tests
Note: For E3 pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet
Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.
